Pedestrian Bridge - Projects Application

Main features used in this application Linear static analysis with finite elements Buckling analysis with finite elements Steel design as per Eurocode3

Description on this project

This is a pedestrian steel network tied arch bridges with inclined hangers that cross each other
at least twice. This particular arrangement of the hangers leads to slender bridge members
mainly subjected to axial forces. The hanger anchorages are located every 3.125m, right where
the transverse girders meet the lateral tie beam.

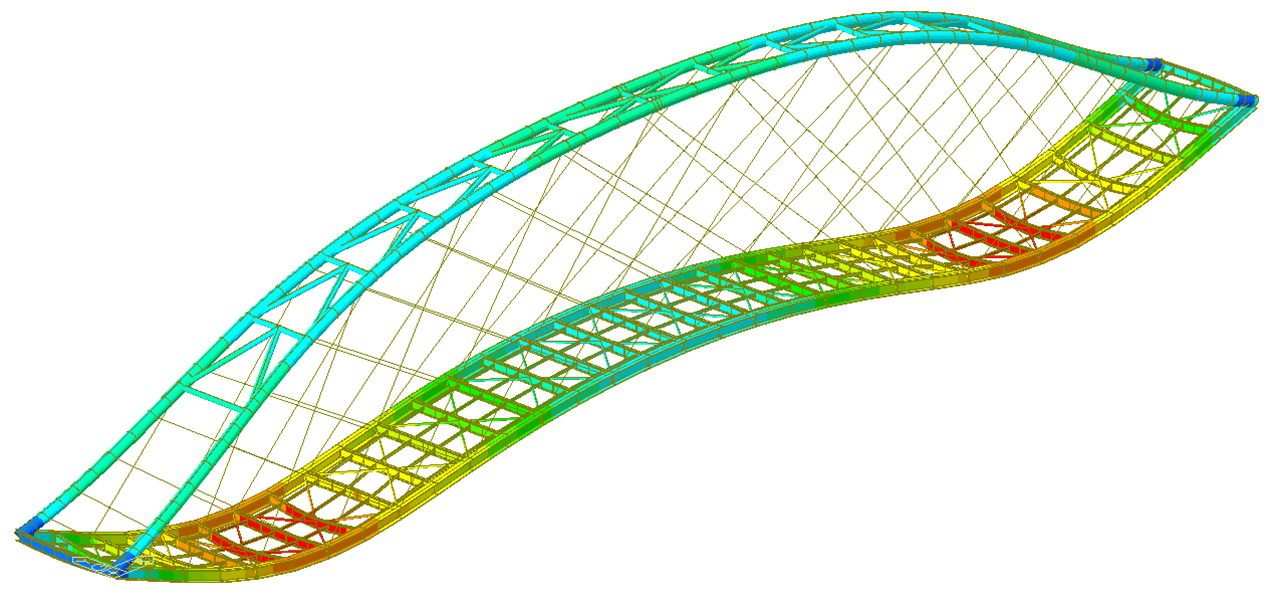

Fig. midas Civil Analysis Result Diagram of Pedestrian Bridge

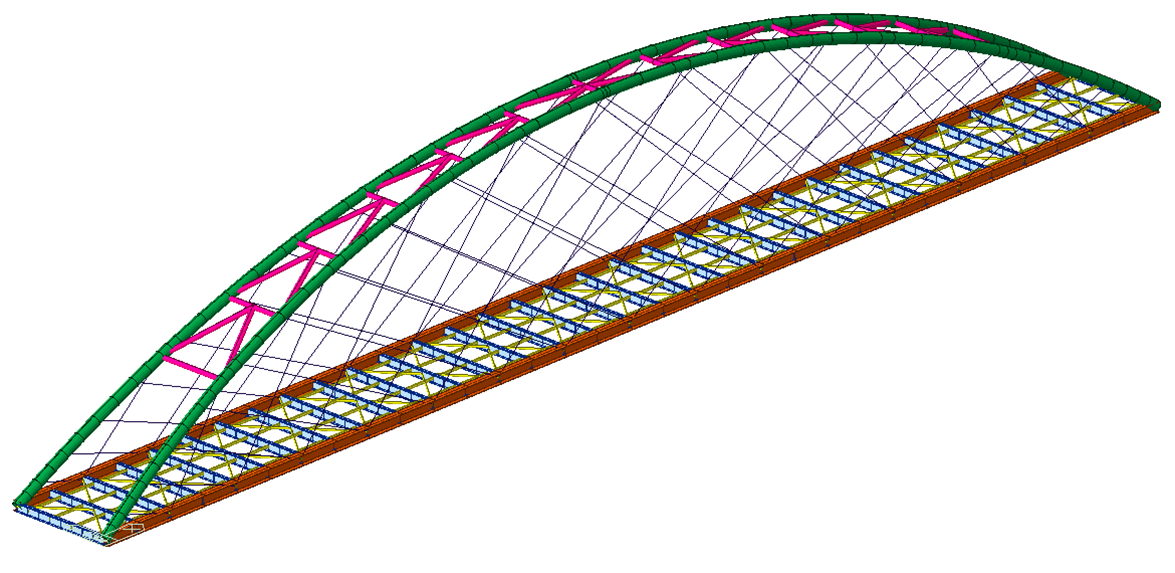

Fig. midas Civil Analysis Result Diagram of Pedestrian Bridge

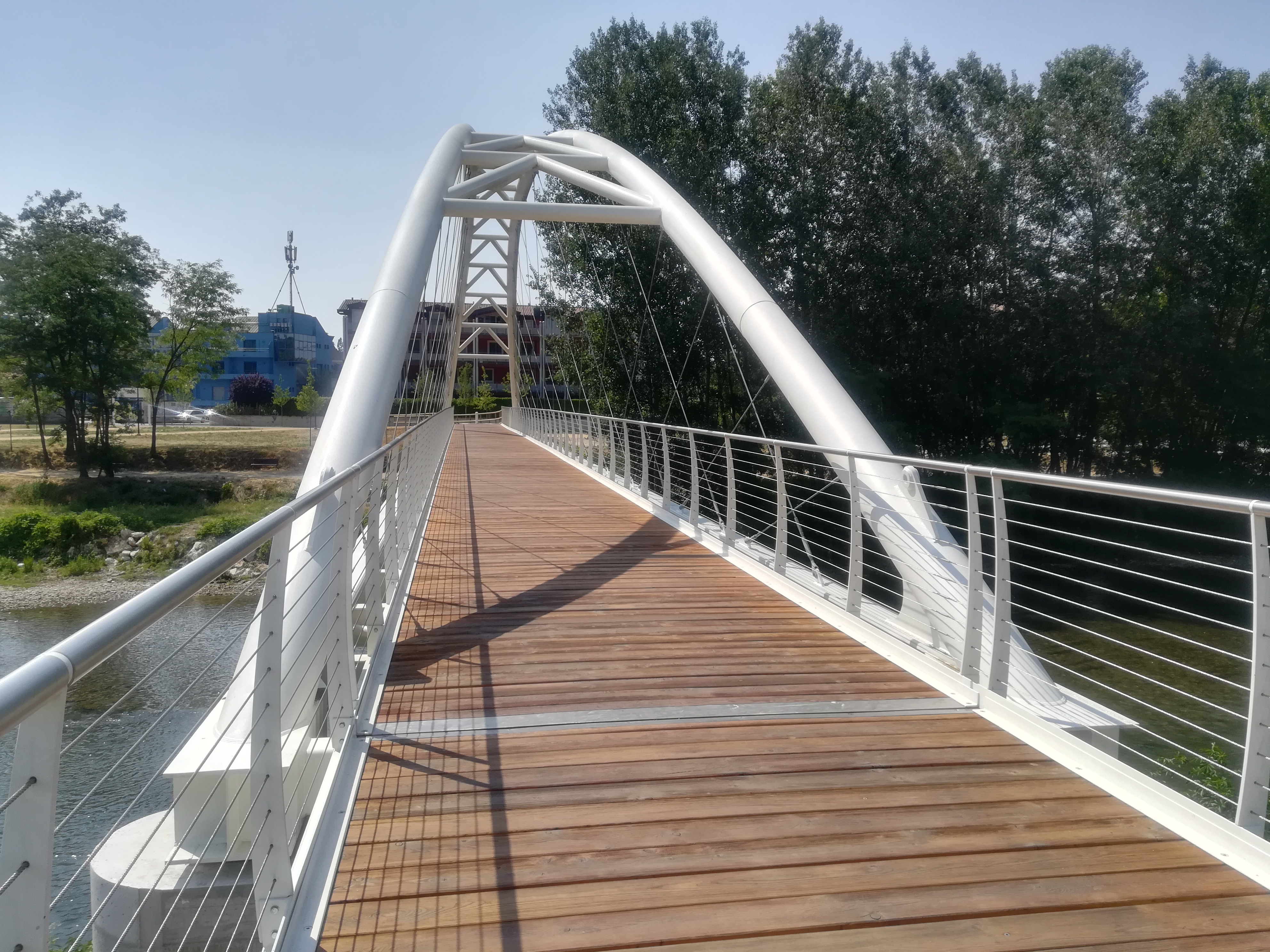

Fig. Pedestrian Bridge Deck
