Nitra Bridge - Projects Application

Main features used in this application Construction stage analysis with post tensioning concrete, creep and shrinkage Vehicle load optimization

Description on this project

The bridge with the total length of 1,164m is formed by 357.5m long main bridge across the
River Nitra and the 806.5m long approach viaduct. The main bridge has 5 spans of length from
50 to 85m. The decks of three-cell box section are casted segment-by-segment in symmetrical
cantilevers. The viaduct is formed by twin bridges of one-cell box section. The bridge with spans
from 28 to 45m was incrementally launched.

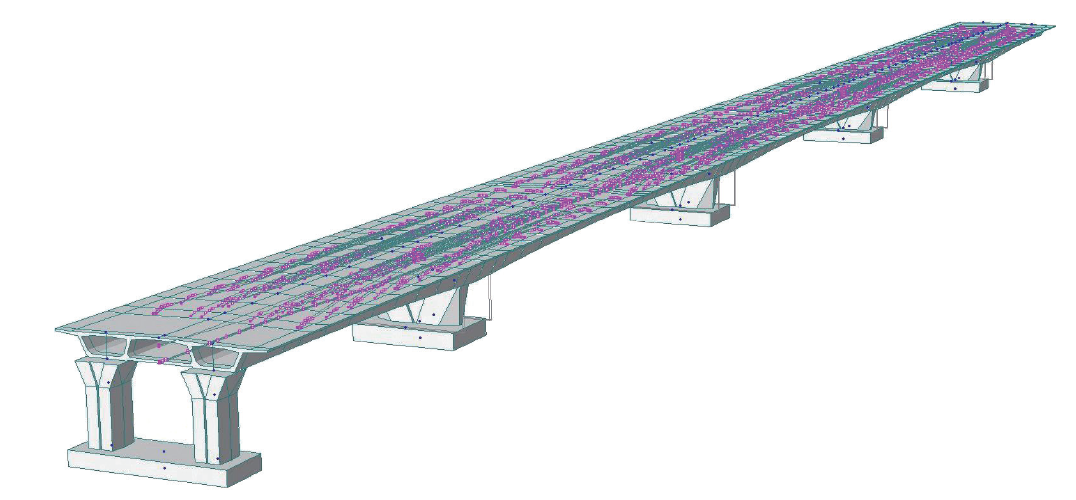

Fig. midas Civil Analysis Result Diagram of Nitra Bridge

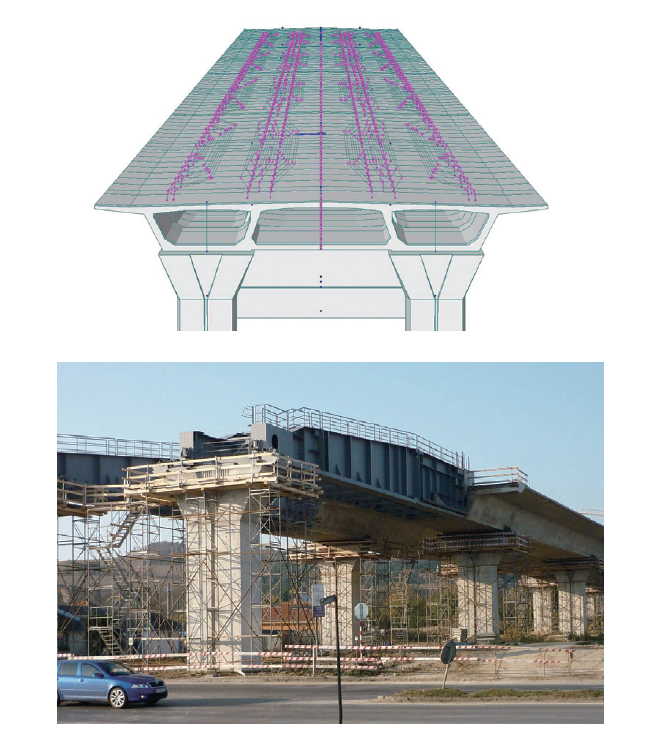

Fig. Nitra Bridge

Fig. Nitra Bridge
