Missouri River Bridge - Projects Application

Main features used in this application Construction stage analysis with steel composite section Soil structure interaction analysis Moving load analysis Steel composite girder design as per AASHTO LRFD

Description on this project

In July 2014, American Bridge was selected as general contractor for the new US-69 Missouri River
Bridge that is replacing a pair of existing through truss spans originally built in 1933 (southbound)
and 1957 (northbound). Spanning its namesake River outside of Kansas City, Missouri, the new
bridge was selected by the Missouri Department of Transportation (MoDOT) for a design-build
procurement process. The project requirements included: a new bridge crossing with four 3.7m
lanes, a shared use path, meeting minimum clearances for railroad and navigation traffic and
other permitting requirements, improvements to two intersections, and maintaining traffic during
the bridge replacement.

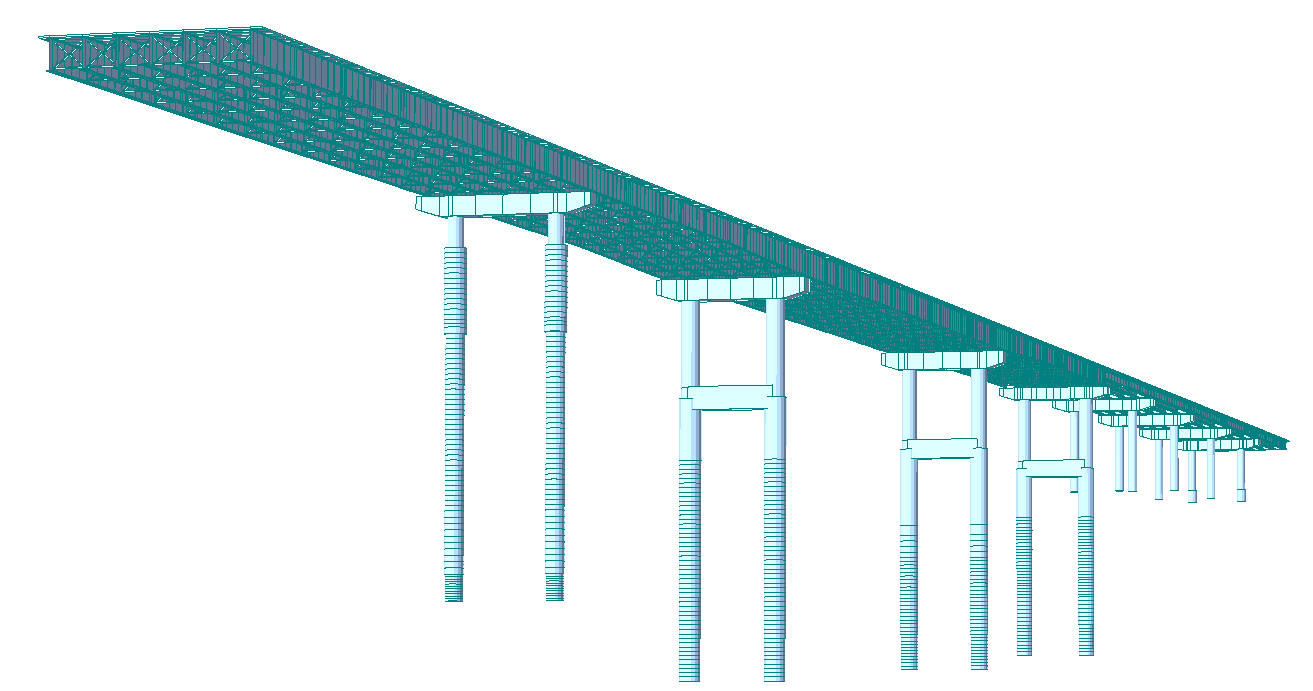

Fig. midas Civil Analysis Model of Missouri River Bridge

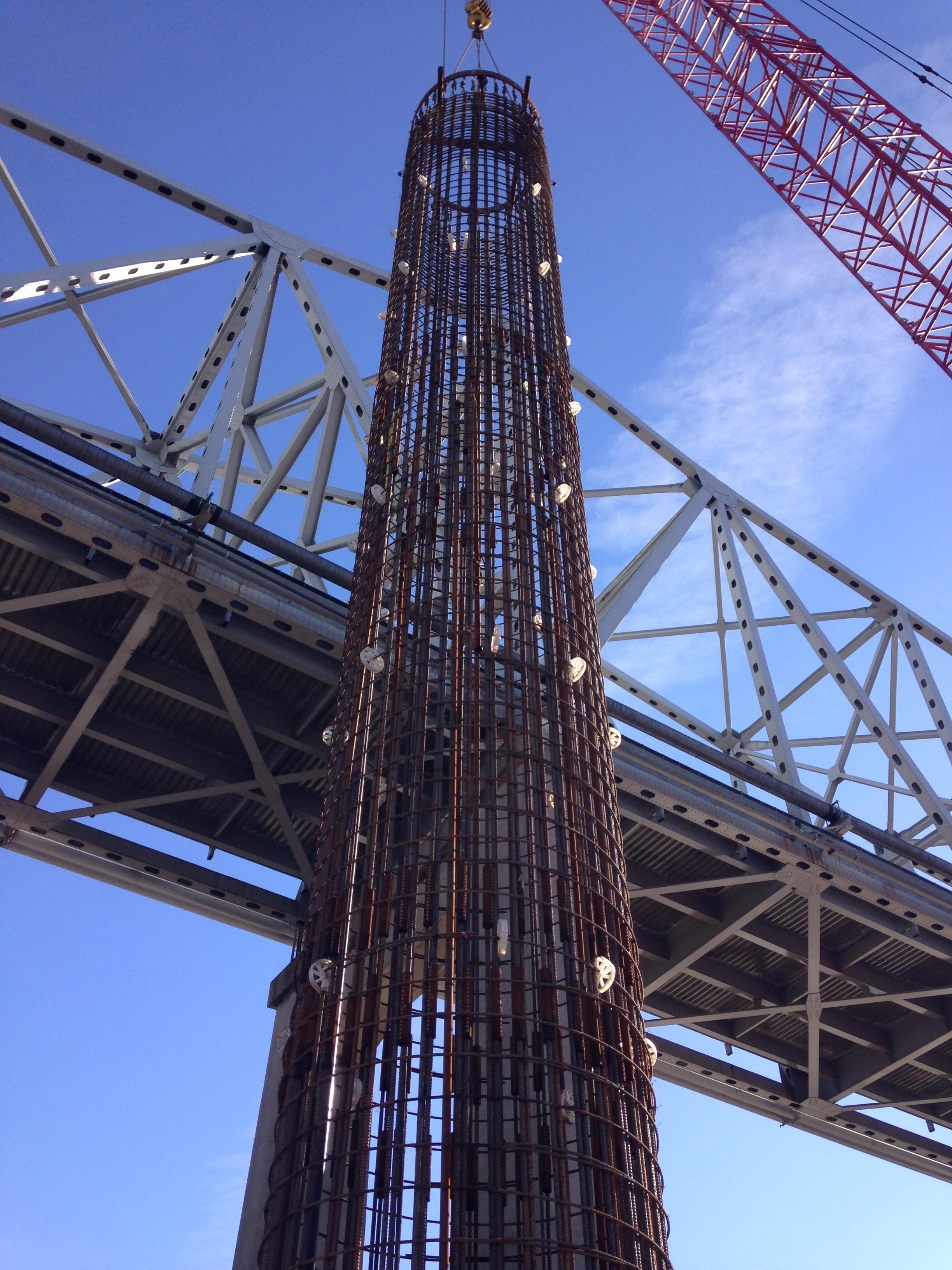

Fig. Construction Process

Here's a chance to use midas Civil for free!

You can try a fully-functional version for 15-day.

Download

Project Contact GARVER

Address
12200 NW Ambassador Drive Suite 625, Kansas City, Missouri 64163, USA
Introduction
With engineering services dating back to 1919, Garver provides services fortransportation, aviation, water, energy, industrial, development, federal, survey,and construction management projects. They have 18 offices in 9 states and theheadquarter is in Little Rock, Arkansas.
Website
www.garverusa.com
Email

Owner

Missouri Department of Transportation(MoDOT)

General Contractor

American Bridge Corporation

Engineering Consultant

GARVER

Construction Period

2014 – 2016

Type of Project

Steel Composite Girder Bridge

Size of Structure

128m Main Span, 659m Total Length
